Wall Mounting Kit for Akasa Fanless Cases

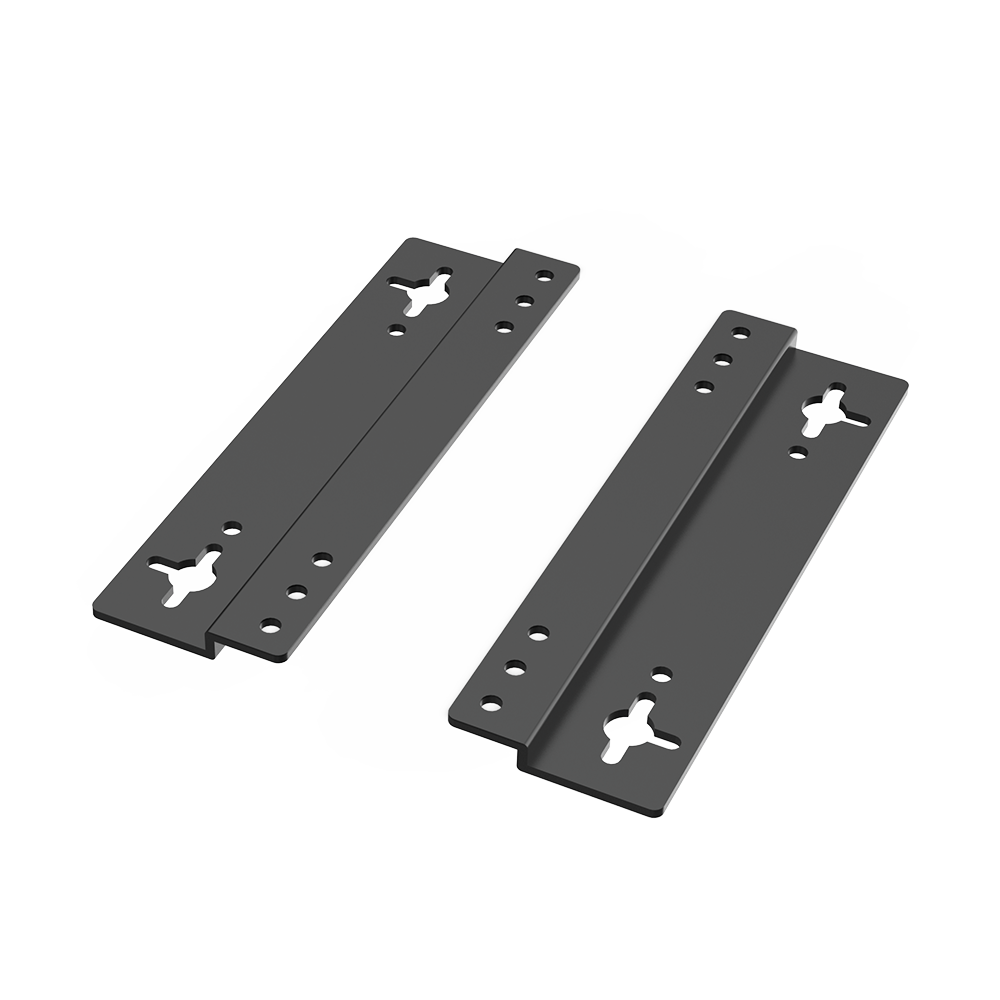

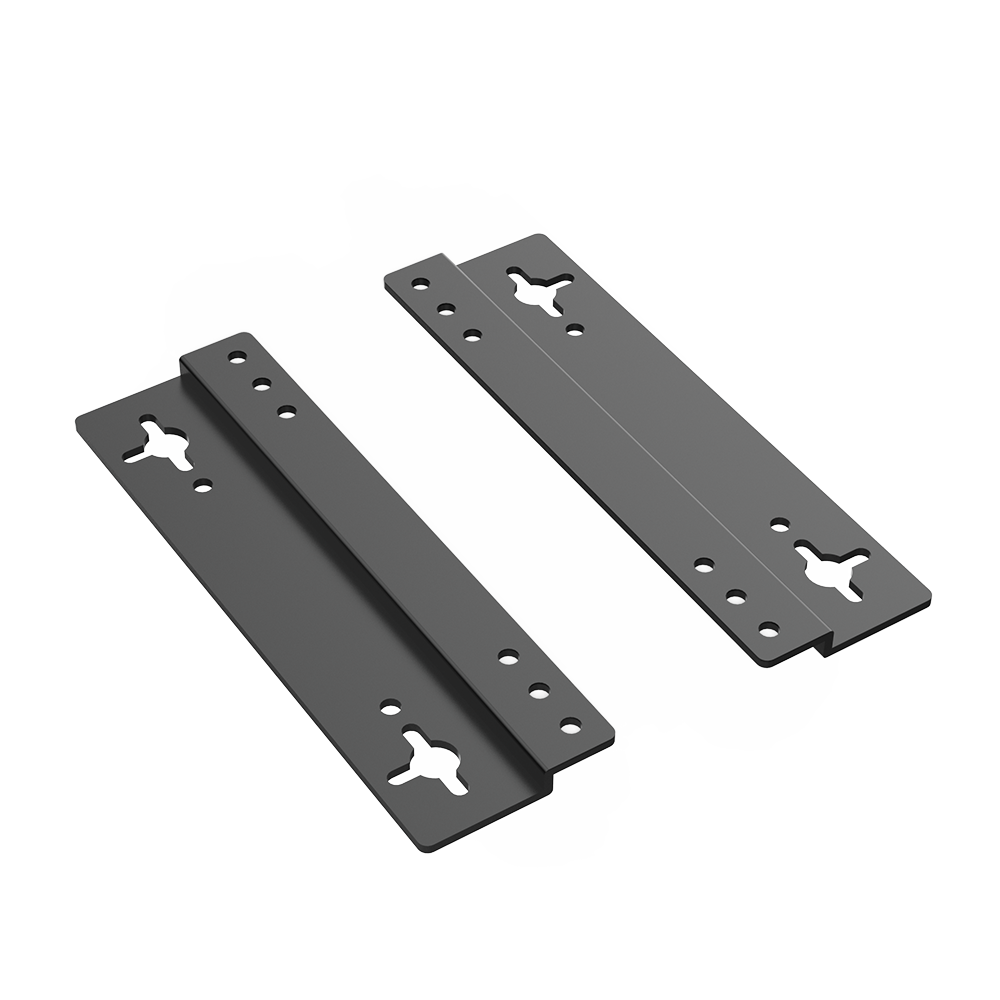

Aluminium wall mounting brackets for selected Akasa fanless cases. Suitable for mounting to any wall surface or inside a cabinet, enclosure, or totem. Includes two brackets. Refer to the specification tab for the full list of supported fanless cases.

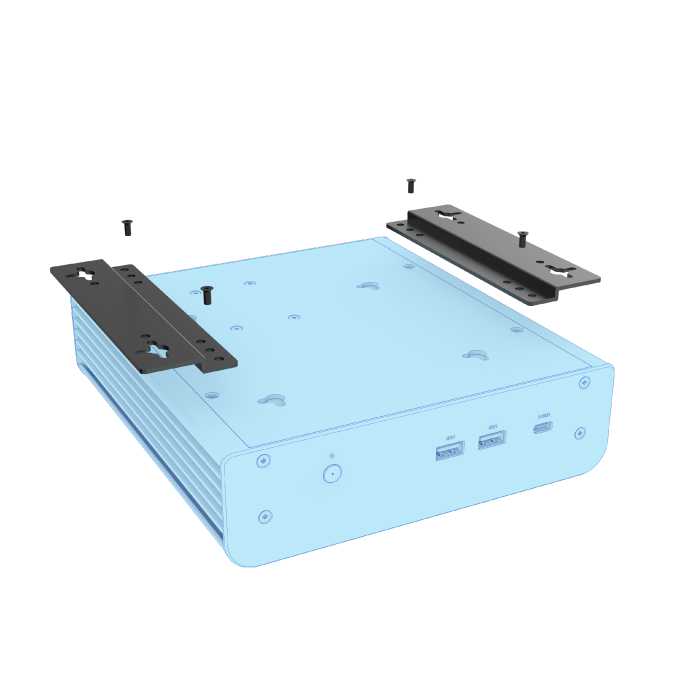

Wall mount the fanless case wherever it is needed. Suited to installations inside cabinets, enclosures or totems, the brackets offer a flexible and secure mounting solution for Akasa fanless cases.
Aluminium brackets with an anodised finish to match the Akasa fanless case range. Compatible across NUC, Mini-ITX and Thin Mini-ITX form factors. Refer to the specification tab for the full list of supported fanless cases.
| Application | Wall mounting brackets for selected Akasa fanless cases |
|---|---|
| Designed for | NUC A-NUC08-M1B, A-NUC22-M3B, A-NUC24-M1B, A-NUC40-M1B, A-NUC40-M2B, A-NUC46-M1B, A-NUC56-M1B, A-NUC67-M1B, A-NUC67-M1BV2, A-NUC70-M1B, A-NUC103-M1B, A-NUC107-M1B, A-NUC109-M1B, A-NUC109-M2B Mini-ITX A-ITX61-S1B Thin Mini-ITX A-ITX22-M1B, A-ITX49-S1B, A-ITX58-M1B |
| Material | Aluminium |
| Dimensions | 113 x 40.8 x 6.9 mm (W x D x H) |
| Brackets | 2 |
| Product Code | A-NUC109-KT01 |
