Pascal TX
IP65 waterproof fanless case with modular connectors for Intel® thin mini-ITX motherboard
Fully water & dust proof aluminium fanless case for Intel® thin mini-ITX motherboard. Modular connectors provide better waterproof and easy installation.
|
IP65 Waterproof fanless case
with modular connectors for Intel® thin Mini-ITX motherboards
IP65
Fully water & dust proof
Modular

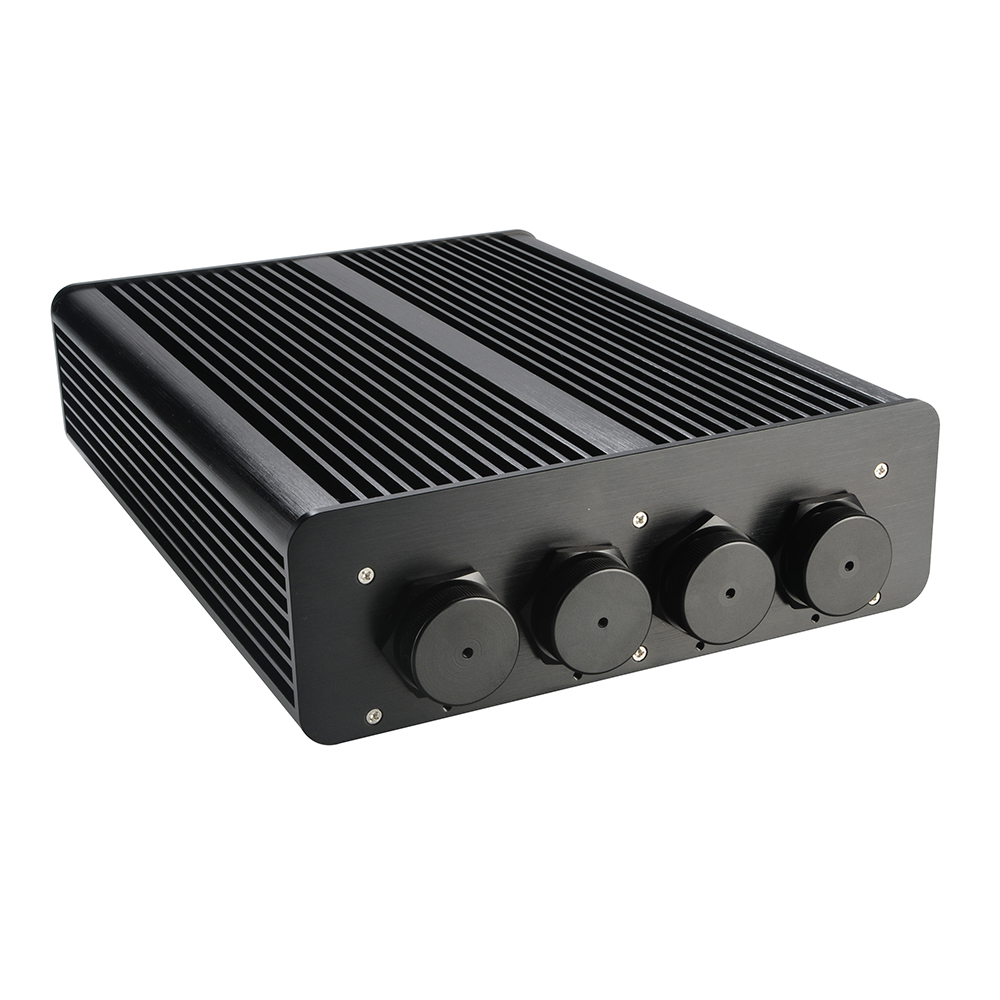

Modular waterproof connectors.
Power adapter cable, USB2.0 cable, HDMI cable and network cable included (length: 2m) Fanless
Aluminium fanless CPU cooling design
Outdoor
Pascal TX is perfect for navigation,
multimedia, digital signage, automation, Car PC, medical and outdoor fields, etc. |
| Material | Aluminium |
|---|---|
| Motherboards Types | Thin mini-ITX with DC onboard |
| Dimensions | 234.6 x 339.8 x 76.1 mm (W x D x H) |
| Drive Bays | 2.5" SSD/HDD (up to 9.1 mm high) |
| Cables | Power adapter cable USB2.0 cable HDMI cable Network cable |
| Cable Length | 2m |
| Front Panel I/O Ports | Power button, power and HDD led |
| Optional Power Adaptor | AK-PD120-04M |
| Product Code | A-ITX22-M1B |
