Pascal BC
IP65 waterproof fanless case for 8th Generation Intel® NUC boards (Bean Canyon)
Fully water & dust proof aluminium fanless case for 8th Generation Intel® NUC boards. Modular connectors provide better waterproof and easy installation. Compatible with Intel® NUC8i7BEH / NUC8i5BEK / NUC8i5BEH / NUC8i3BEK / NUC8i3BEH.
|
IP65 Waterproof fanless case
with modular connectors for 8th Generation Intel® NUC boards
(Bean Canyon)
IP65
Fully water & dust proof
Modular

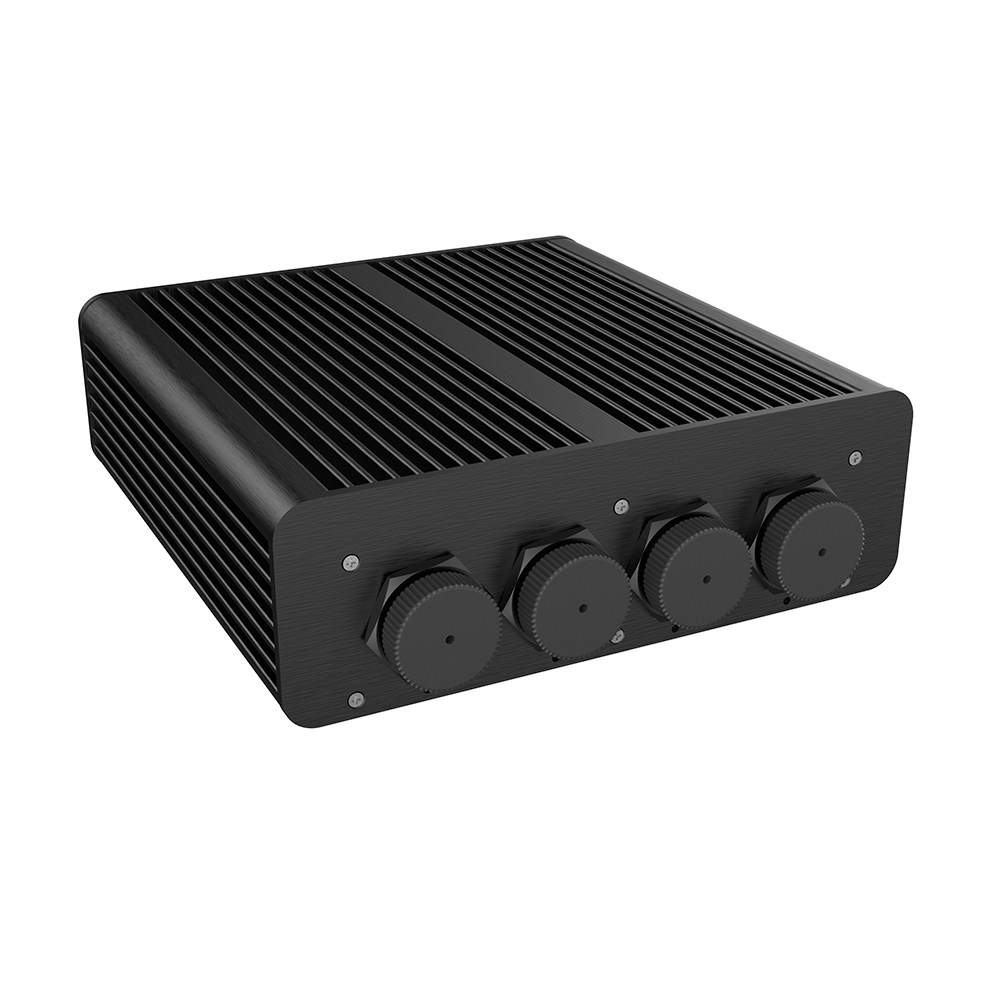

Modular waterproof connectors.
Power adapter cable, USB3.0 cable, HDMI cable and network cable included (length: 2m) Fanless
Aluminium fanless cooling design
Outdoor
Pascal BC is perfect for navigation,
multimedia, digital signage, automation, car PC, medical and outdoor fields, etc. |
| Material | Aluminium |
|---|---|
| Motherboards types | UCFF 4" X 4" |
| Motherboard support | Intel® NUC Board (kit): NUC8i7BEH NUC8i5BEK / NUC8i5BEH NUC8i3BEK / NUC8i3BEH |
| Dimensions | 234.6 x 270 x 76.1 mm (W x D x H) |
| Drive bays | 2.5" SSD/HDD (up to 9.1 mm high) |
| Cables | Power adapter USB 3.0 or USB 2.0 HDMI Network |
| Cable length | 2m |
| Front I/O ports | Power button, power and HDD led |
| Optional Power Adaptor | AK-PD120-04M |
| Product code | A-NUC46-M1B |
