Laplace K14
1U Fanless Mini-STX Case for Kontron K4021-U with Intel® Core™ Processors

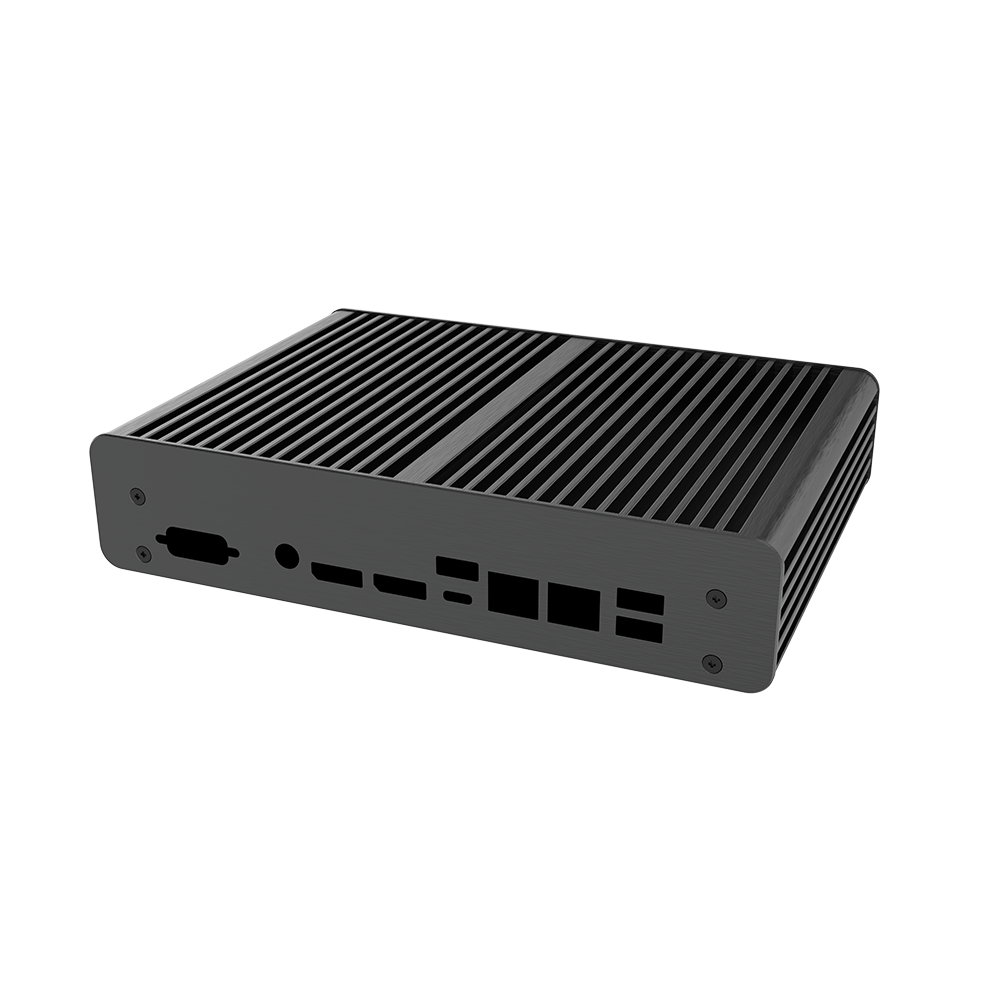

Slim 1U fanless Mini-STX case for Core™ Ultra 7 and 5 processors, boasting a compact volume of 1.5L. Sleek design and fanless operation make it perfect for noise-sensitive environments. Compatible with VESA mount monitors, it saves desk space for a clutter-free setup.
• Premium aluminium fanless CPU cooling design
• Small volume of 1.5L
• Wide application

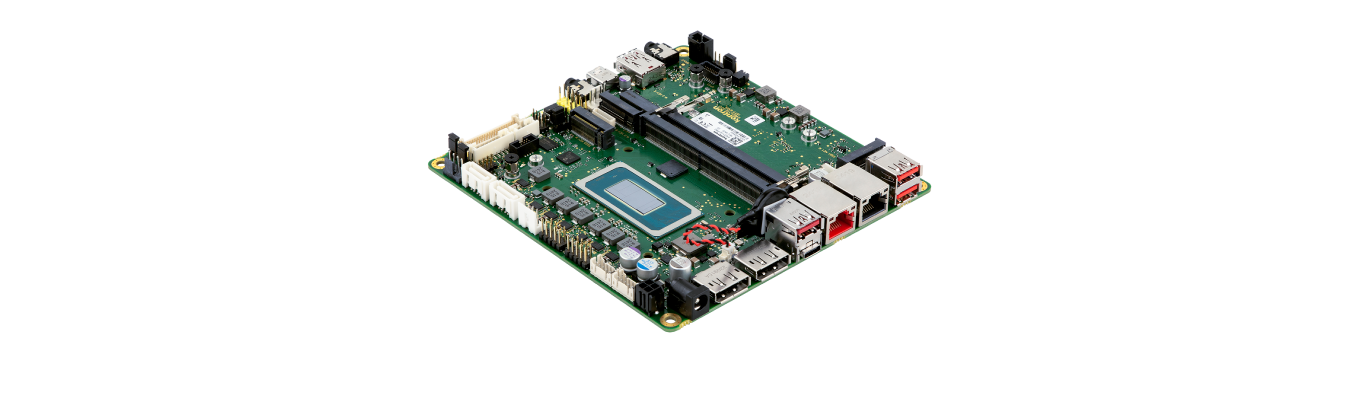

Designed specifically for Kontron K4021-U Mini-STX motherboard series up to 15W Thermal Design Point (TDP).
• K4021-U mSTX / U2: Intel® Core™ Ultra 5 125U (12C/15W) SoC
• K4021-U mSTX / U5: Intel® Core™ Ultra 7 155U (12C/15W) SoC

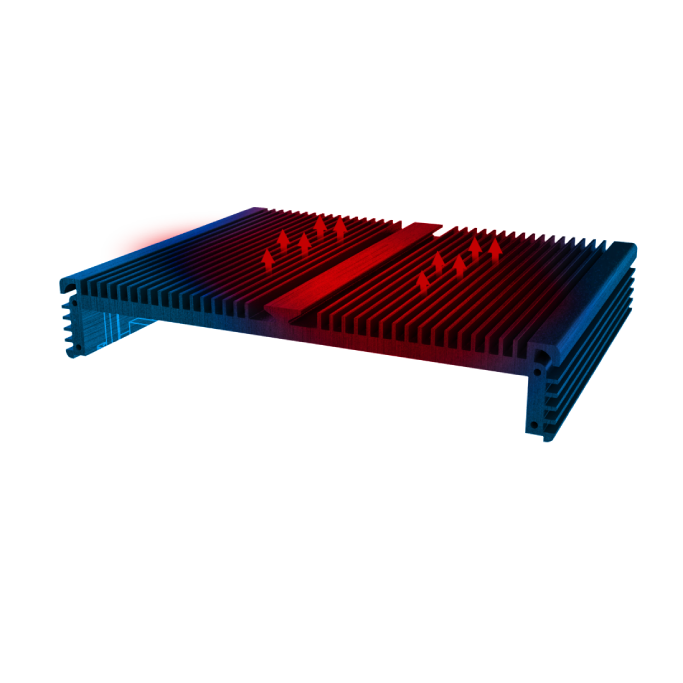

Experience premium-grade fanless CPU cooling engineered from high-quality aluminum for optimal thermal performance and durability.
Broad interface compatibility with Kontron K4021-U motherboards featuring LAN, USB, and DisplayPort support.
Slim profile and remarkably small volume of just 1.5L, which can seamlessly integrate into any workspace, whether discreetly positioned on your desk, behind your monitor, or within a totem setup.
Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Panel Material | Aluminium |
| Motherboard Types | Mini-STX |
| Motherboard Support | (1) K4021-U mSTX / U2: Intel® Core™ Ultra 5 125U (12C/15W) SoC
(2) K4021-U mSTX / U5: Intel® Core™ Ultra 7 155U (12C/15W) SoC |
| Dimensions | 215 x 154 x 45.5 mm (W x D x H) |
| Maximum TDP Support | 15W |

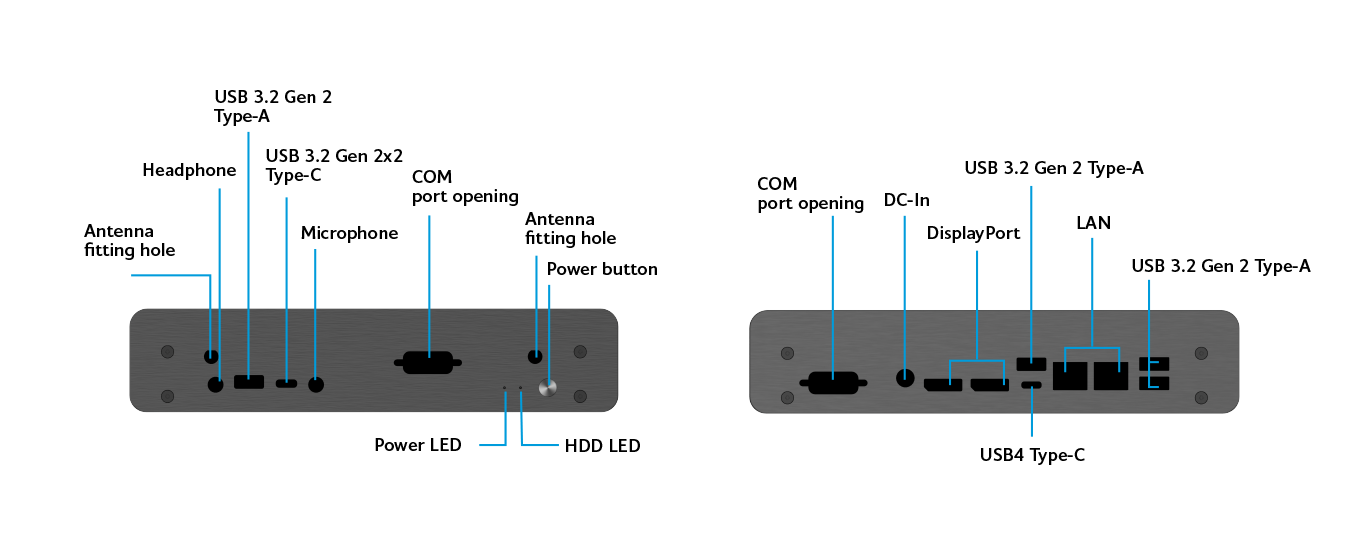

| Front I/O Interfaces | Antenna fitting hole x 2, COM port opening x 1, Headphone x 1, USB 3.2 Gen 2 Type-A x 1, USB 3.2 Gen 2x2 Type-C x 1, Microphone x 1, Power LED x 1, HDD LED x 1, Power button |

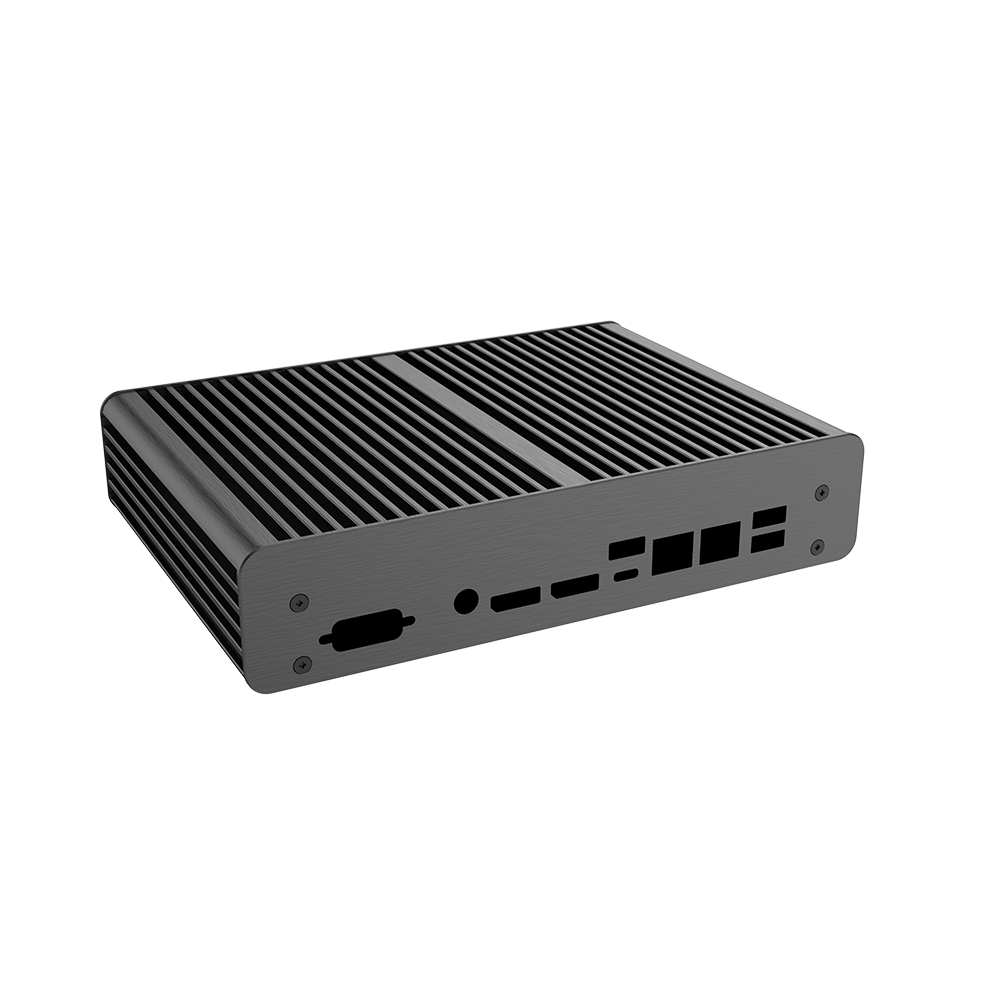

| Rear I/O Interfaces | COM port opening x 1, DC-in x 1, DisplayPort x 2, USB4 Type-C x 1, USB 3.2 Gen2 Type-A x 3, LAN x 2 |

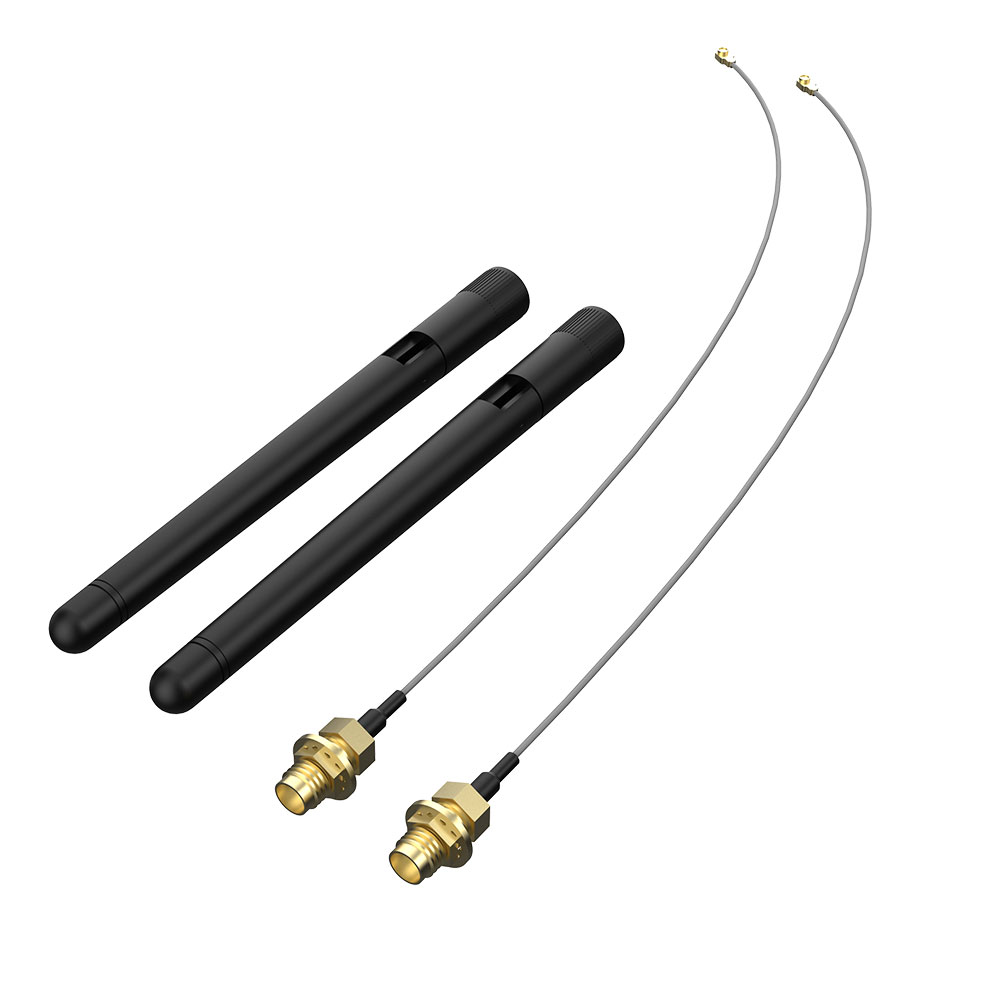

| Antenna Fitting Holes | 2 |
| VESA Mounting | Supported |
| Product Code | A-STX16-M1B |
