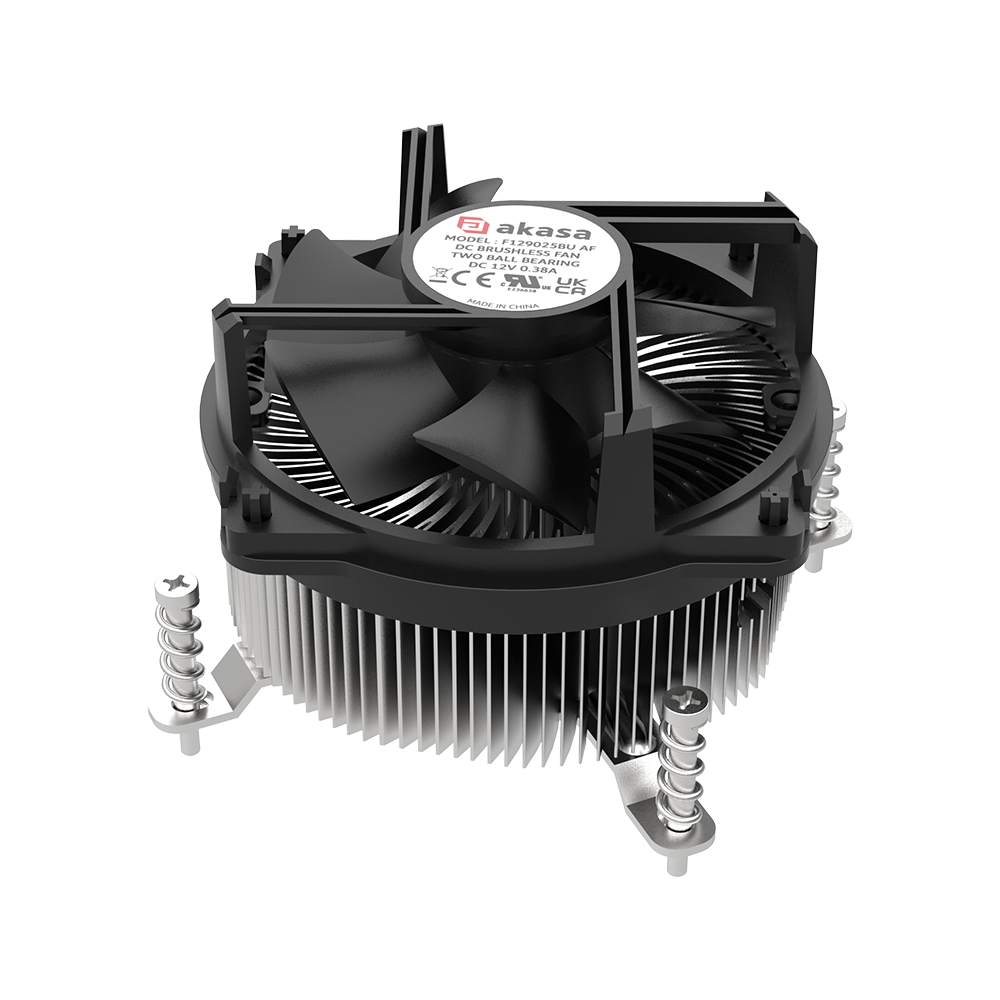

Extra-Secure Intel® LGA1851 Cooler

• Optimised and intelligent design
• Compatible with Intel® LGA1851 and LGA1700 sockets
• Low-noise and efficient cooling
• Extra-secure mounting
• Versatile motherboard compatibility
• Pre-applied thermal paste

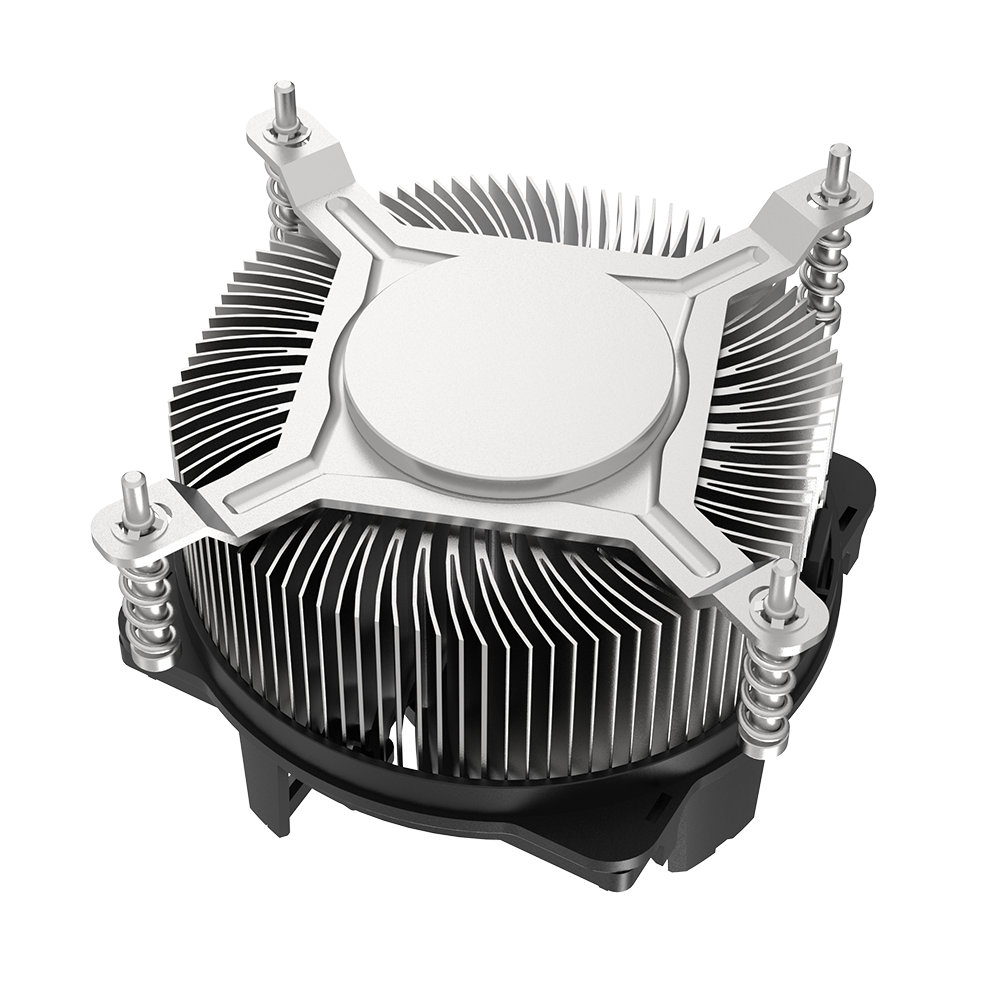

Optimised Design for Maximum Heat Dissipation

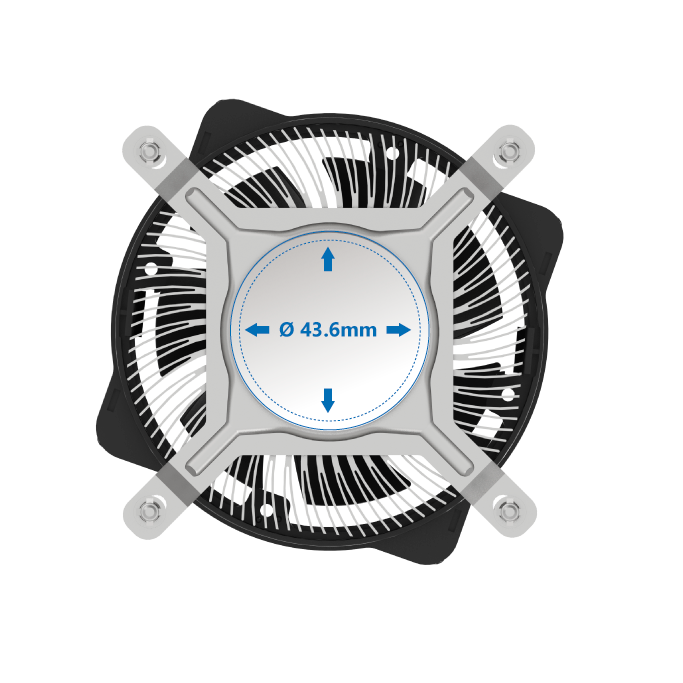

High-engineered aluminium heatsink features bi-ped fins and a large aluminium core base, ensuring maximum heat dissipation and thermal transfer. Designed to work with CPUs up to 100W TDP.

Compatible with Intel® LGA1851 and LGA1700 sockets.

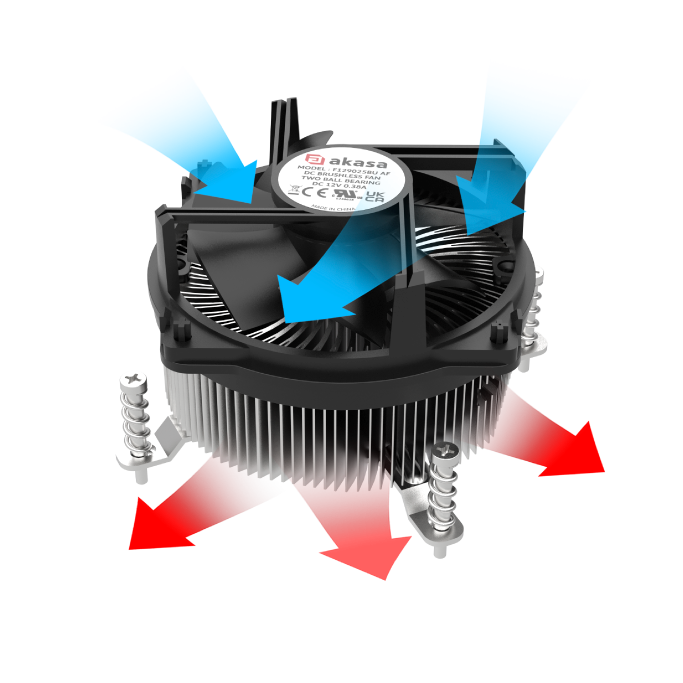

Low-Noise and Efficient Cooling

The 90mm PWM fan delivers efficient cooling, automatically adjusting its speed based on workload for quiet operation. Featuring a Two Ball bearing, the fan offers improved durability and a longer lifespan, ensuring reliable cooling performance over time.

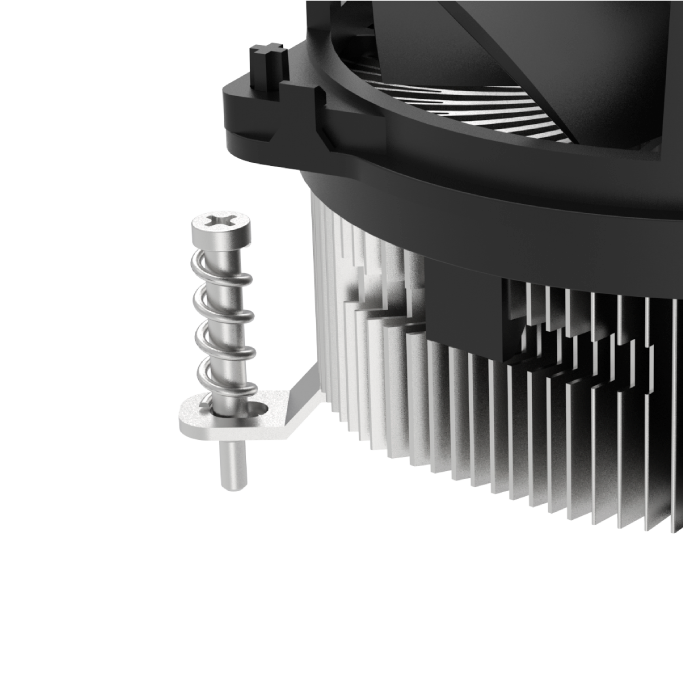

Extra-Secure Mounting

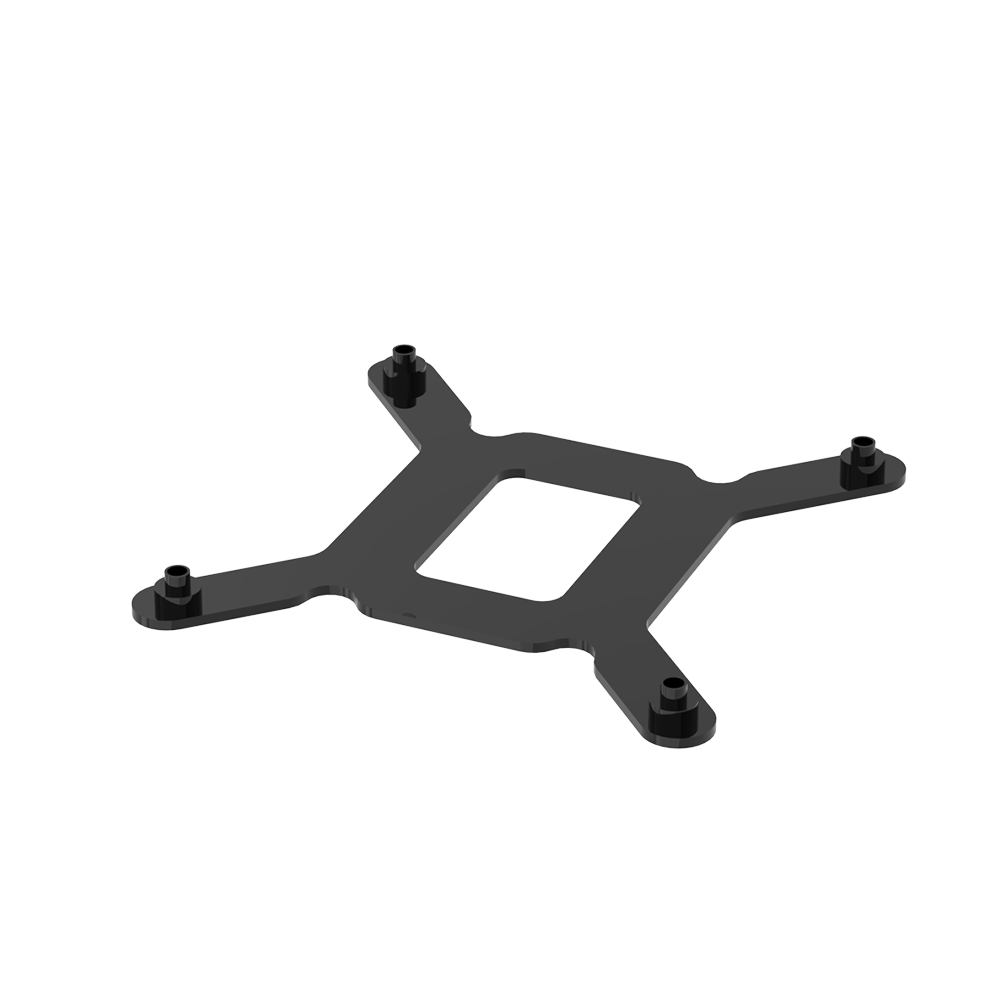

The metal screw and retention plate mounting design ensures secure, reliable installation for consistent, long-lasting cooling.

Versatile Motherboard Compatibility

With a space-efficient 64.5mm height and a small footprint, this cooler offers wide motherboard compatibility (ATX, Micro-ATX, Mini-ITX and Thin Mini-ITX), making it ideal for workstation desktops, industrial PCs and enterprise systems.

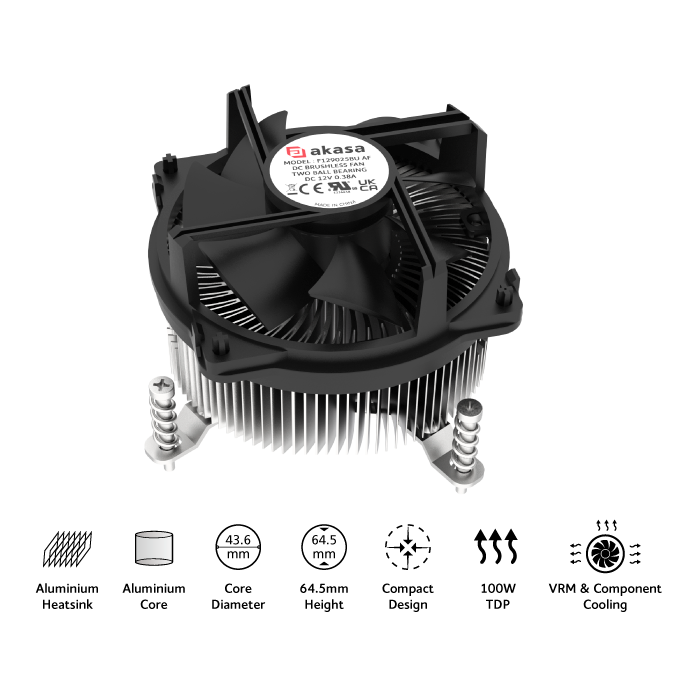

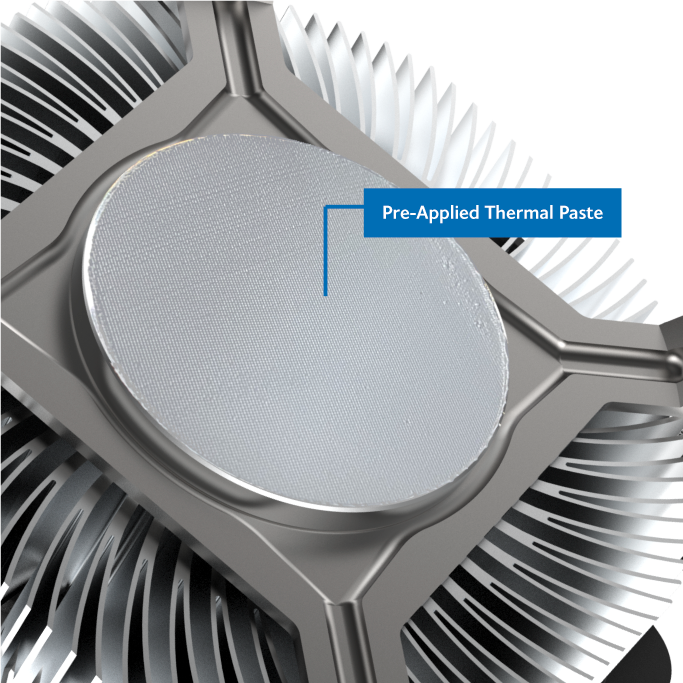

Pre-Applied Thermal Paste

Pre-applied high-performance thermal interface material (TIM) ensures optimal heat transfer right out of the box, eliminating the need for manual application and reducing installation time.

Socket Type	Intel LGA1700, 1851
Suggestion TDP (W)	100
Cooler Dimensions	94.8 x 94.8 x 64.5 mm
Heatsink Material	Aluminium fins and core
Installation	Screw mounting
Thermal Interface	Pre-applied
Weight	380.7g
Product Code	AK-CC6620BP01

Dimensions	∅90 x 25mm
Bearing	Two Ball Bearing
Fan Speed	500 - 3400 RPM
Max Airflow	40.9 CFM
Max Air Pressure	3.81 mm-H2O
Noise Level	19 - 36 dB(A)
Current Rating for Fan	0.38A
Voltage Rating for Fan	DC 12V
Fan Connector	4-Pin PWM
Fan Life Expectancy	80,000 hours
Warranty	2 years
